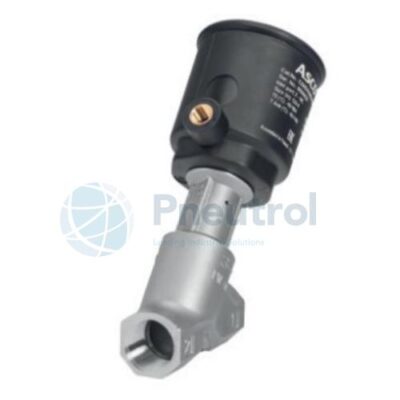

ASCO E290D0450SA0000 – G1″, NC, DN25, Actuator Diameter 63mm, Stainless Steel, Series E290 Pressure Operated Valve

Part Number: E290D0450SA0000 Manufacturer: ASCO

  • Price Each:

    (exc. VAT)
    £269.55

  • This item is currently out of stock, awaiting replenishment. Please contact us for a lead time.

Enquire about this product:
Contact Form Demo (#3)

Description

ASCO E290D0450SA0000 has a high flow due to angled seat design. Anti-waterhammer design (Fluid entry under the disc). Vacuum operation up to 10mbar. Wide range of piston-type operators (32 – 50- 63 – 90 -125 mm dia.) rotatable through 360Deg, for maximum performance at different minimum pilot pressures. High performance, maintenance-free stuffing box. The valves satisfy Pressure Equipment Directive 97/23/EC, category 1 (DN > 25) or article 3.3 (DN 25).

ASCO Product Reference: E290D0450SA0000

ASCO Old Product Reference: E290B053

Additional information

Weight 1.7 kg
Body Material

Stainless Steel

Function

2/2 NC

Port Connection

G1

Flow Coefficient KV (m3/h)

17.7

Flow Coefficient KV (l/min)

295

Pilot Pressure (Bar)

10

Orifice Size

25 mm

Media

Air, Corrosive Fluids, Gas, Oil, Steam, Water

Operator Diameter ( mm)

63

Manufacturer

ASCO

Working Pressure Min

0 Bar

Working Pressure Max

10 Bar
